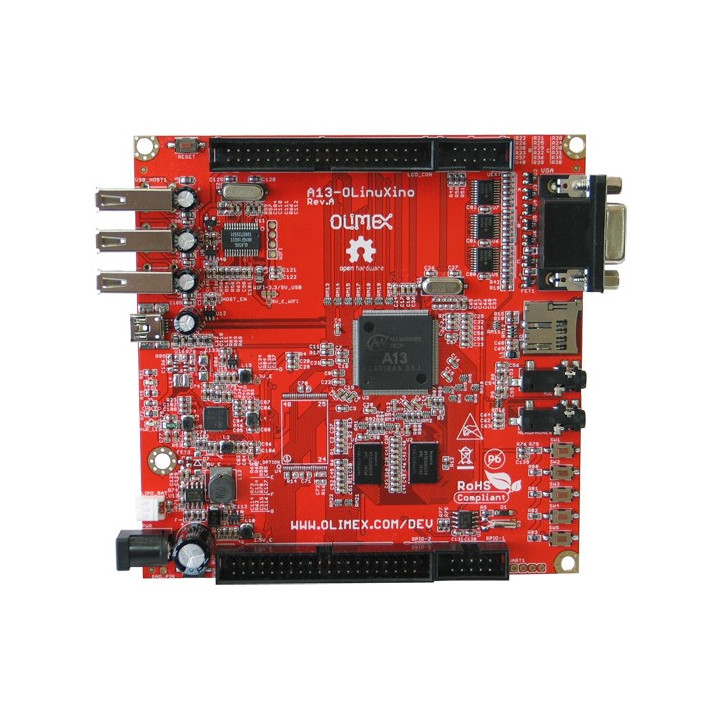

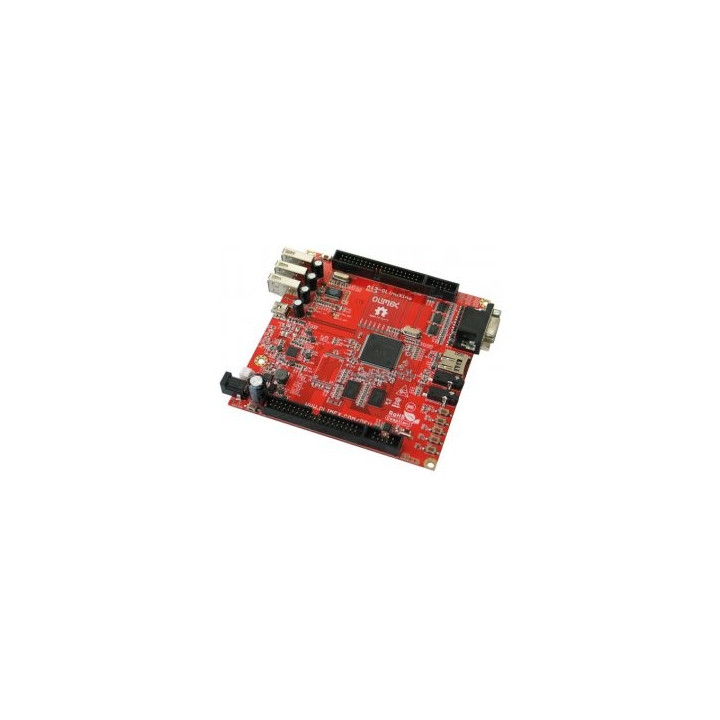

Carte A13 Cortex A8 processor OlinuXino

Platine à base d'un CPU A13 Cortex A8 processor à 1GHz avec GPU 3D Mali400 pour application embarquée sous Linux.

• A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
• 512 MB RAM (2 x 256Mbit x 8)
• 4/8GB NAND Flash (for A13-OLinuXino-WIFI)
• 6-16VDC input power supply, noise immune design
• 3 + 1 USB hosts, 3 available for users, 1 leads to onboard pinout or to WIFI module (for A13-OLinuXino-WIFI)
• 1 USB OTG which can power the board
• SD-card connector for booting optional Linux images
• VGA video output
• Battery option and connector
• LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
• Audio output
• Microphone input
• 4 Mount holes
• RTC PCF8563 on board for real time clock and alarms
• 5 Keys on board for android navigation
• UEXT connector for attaching expansion boards (sensors, relays, etc)
• GPIO connector with 68/74 pins and these signals:
• 17 for adding NAND flash;
• 22 for connecting LCDs;
• 20+4 including 8 GPIOs which can be input, output, interrupt sources;
• 3x I2C;
• 2x UARTs;
• SDIO2 for connecting SDcards and modules;
• 5 system pins: +5V, +3.3V, GND, RESET, NMI
• Dimensions: (120x120)mm ~ (4.7x4.7)''
