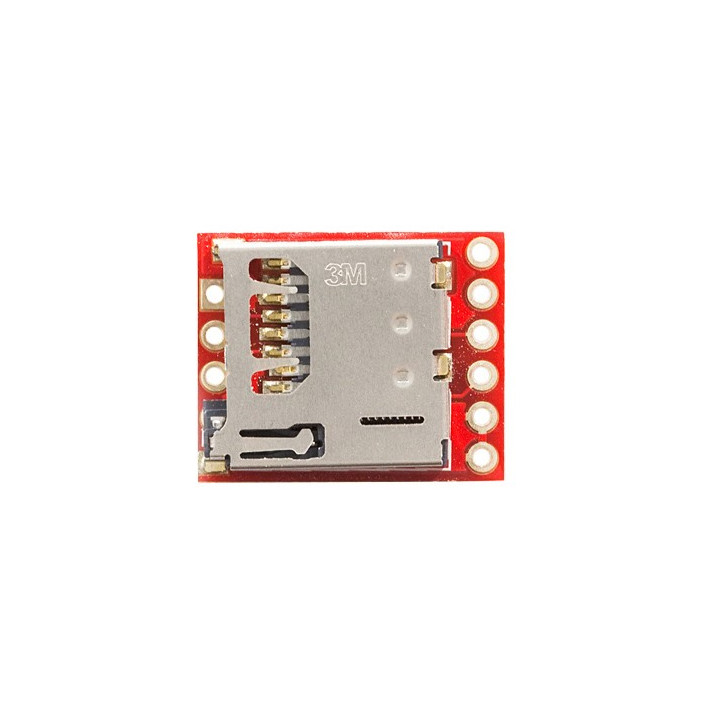

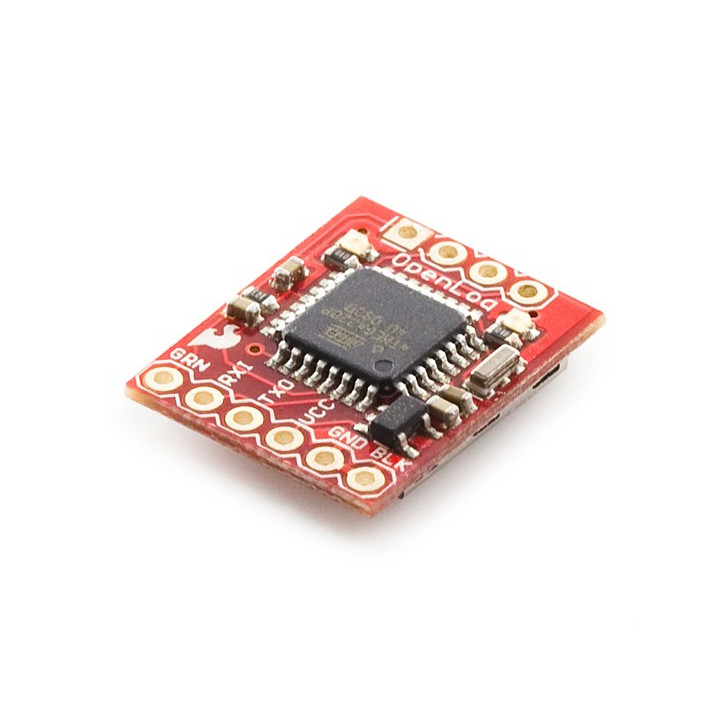

Module SparkFun OpenLog DEV - Data Logger pour Arduino 64GB

Ce module est un data logger open source utilisable sur Arduino. Ce module est un data logger open source.

• Log to low-cost microSD FAT16/32 cards up to 64GB
• Simple command interface
• Edit config.txt file from a computer to change baud rate and other system settings
• Three modes:
  • NewLog creates a new log every power up and immediately starts logging
  • SeqLog appends a file called "SeqLog.txt" at every power up and immediately starts logging
  • Command mode starts OpenLog at a command prompt at power up
• Configurable baud rates (2400 to 115200bps)
• Configure unit through config file or the menu system
• Power, ground, and RX-I are the minimum connections
• Reprogrammable ATmega328 using the Arduino IDE
• Two LEDs indicate writing status
• Input voltage from 3.3V to 12V
• 2mA idle, 6mA at maximum recording rate
• 0.16 x 0.6 x 0.75" (4 x 15 x 19mm)
