Programmateur universel BeeProg3

Programmateur universel BeeProg3

60-0061
Produit approvisionnable sur commande - Délai 8 à 15 j env.
2 388,00 € TTC

Dont 0,24 € d'eco-participation déjà incluse dans le prix


1 990,00 € HT

Modèle 64 broches - Very High Speed

Architecturé sur la base d'un puissant FPGA associé à un processeur ARM et à une mémoire SSD, le "BeeProg3" est un programmateur universel dôté d'un support spécial 64 broches. Ce dernier est spécialement conçu pour la programmation à très haute vitesse de composants de forte capacité mémoire.

Bénéficiant d'une garantie de 3 ans, il est destiné à s'interfacer avec un compatible PC (sous environnement Windows™ XP à Windows™ 10) via une liaison USB ou Ethernet afin de pouvoir bénéificier d'une vitese de programmation optimale. Par exemple une mémoire eMMC NAND Flash de 8 GB pourra être programmée en moins de 250 sec (si la mémoire est capable de supporter les accès haute vitesse).

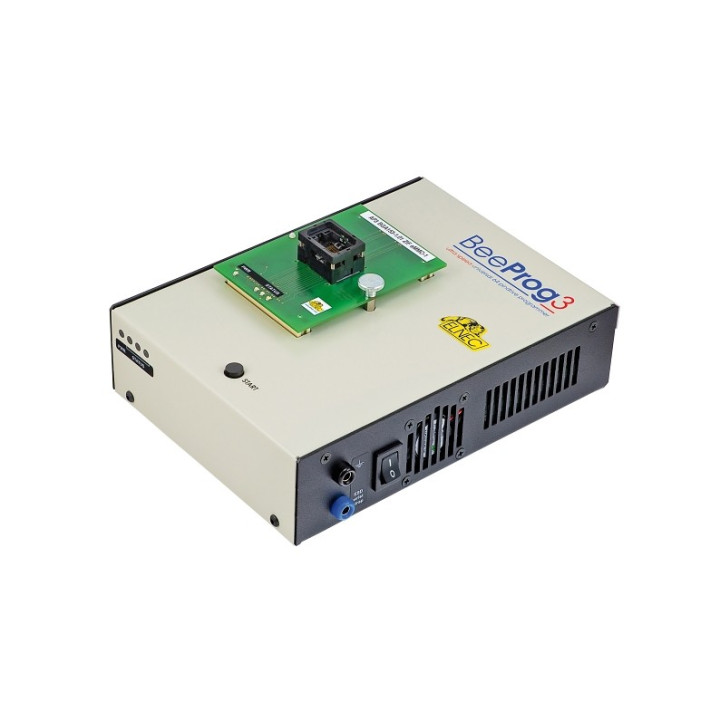

A noter que de part sa très haute vitesse de programmation, le "BeeProg3" est equipé d'un système de support spécial avec fixation par vis (le support représenté sur la photo n'est pas livré d'origine).


Son éléctronique de commande révolutionnaire lui permet de générer des niveaux logiques, des "tirages" bas ou haut, des masses, une tension VCC, etc... sur chacune des broches de son support, l'autorisant ainsi à programmer (par simple mise à jour logiciel) la plupart des composants 64 broches.


Caractéristiques techniques:


- USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate
- 100Mbit LAN port
- On-board intelligence: powerful processor (ARM9 400MHz) and FPGA based state machine (basic clock 50 MHz plus PLLs)
- built-in mSATA SSD as internal buffer (32GB type, upgradeable to higher capacity)(*1, *2, *3)
- three D/A converters for VCC1, VCC2, and VPP, controllable rise and fall time
- VCC1, VCC2 range 0.8V..7V/1A (step 10mV)
- VPP range 0V..25V/1A (step 25mV)
- Temperature controlled fan
- selftest capability
- Protection against surge and ESD on power supply input, USB and LAN port and all pins of programming module interface (PMI)(IEC1000-4-2: 15kV air, 8kV contact)
- banana jack for ESD wrist straps connection
- banana jack for connection to ground



Composants supportés (avec adapteurs addtionnels):


- NAND FLASH: Samsung K9xxx, KFxxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Toshiba TC58xxx,
TH58xxx, Micron MT29Fxxx, (ex Numonyx ex STM) NANDxxx, Spansion S30Mxxx, S34xxx,
3D-Plus 3DFNxxx, ATO Solution AFNDxxx, Fidelix FMNDxxx, Eon Silicon Sol. EN27xxx,
ESMT F59xxx, LBA-NAND Toshiba THGVNxxx

- serial NAND FLASH: Micron MT29Fxxx, GigaDevice GD5Fxxx

- eMMC: Hynix H26Mxxxxxxxx, Kingston KE44B-xxxx/xxx, Micron MTFCxxxxxx,
Numonyx NANDxxxxxxxx, Phison PSM4A11-xx, Samsung KLMxxxxxxx, SanDisk SDINxxx-xx,
Toshiba THGBMxxxxxxxxxx

- eMCP: eMMC+RAM

- Memory Cards: MMC, SD, SDHC, SDXC

- Multi-chip devices: NAND+RAM, NOR+RAM, NOR+NOR+RAM, NAND+NOR+RAM

- Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx,
25Exxx, 25Fxxx, 25Lxxx, 25Mxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx,
25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX66Lxxx, S70FLxxx), DataFlash (AT45Dxxx, AT26Dxxx)

- parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29GLxxx, 29BVxxx, 29LVxxx, 29Wxxx,
49Fxxx series, Samsung's K8Fxxxx, K8Cxxxx, K8Sxxxx, K8Pxxxx series, ...

- Serial E(E)PROM: Serial E(E)PROM: 11LCxxx, 24Cxxx, 24Fxxx, 25Cxxx, 30TSExxx, 34Cxxx,
34TSxx, 59Cxxx, 85xxx, 93Cxxx, NVM3060, MDAxxx series, full support for LV series, AT88SCxxx

- Serial FRAM: Cypress(Ramtron): FM24xxxxxx, FM25xxxxxx, Fujitsu: MB85RCxxxx, MB85RSxxxx,
Lapis(OKI, Rohm): MR44xxxxx, MR45xxxxx

- Configuration (EE)PROM: XCFxxx, XC17xxxx, XC18Vxxx, EPCxxx, EPCSxxx, AT17xxx,
AT18Fxxx, 37LVxx

- PLD Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX7000AE, MAXII/G/Z, MAX V

- PLD Lattice: ispGAL22V10x, ispLSI1xxx, ispLSI1xxxEA, ispLSI2xxx, ispLSI2xxxA,
ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, LC4xxxB/C/V/ZC/ZE, M4-xx/xx,
M4A3-xx/xx, M4A5-xx/xx, M4LV-xx/xx, ispCLOCK, Power Manager/II, ProcessorPM

- PLD Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II

- SPLD/CPLD series: AMD, AMI, Atmel, Cypress, Gould, ICT, Lattice, National Semicond., Philips,
STMicroelectronics, TI (TMS), Vantis, VLSI

- FPGA: Lattice: MachXO, MachXO2, LatticeXP, LatticeXP2, ispXPGA

- FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion

- Microcontrollers Atmel ARM AT91SAM7Sxx, AT91SAM7Lxx, AT91SAM7Xxx, AT91SAM7XCxx,
AT91SAM7SExx series;

- Microcontrollers Atmel ARM9: AT91SAM9xxx series;

- Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC18xxx, PIC24xxx,
dsPIC, PIC32xxx series

- Microcontrollers Motorola/Freescale: S12, MCF52 series (ColdFire), MC56F, Kinetis (K,L),
Qorivva/5xxx Power Architecture

- Microcontrollers NEC: uPD70Fxxx, uPD78Fxxx series

- Microcontrollers Nordic Semiconductor: nRF24LExxx, nRF24LUxxx, nRF315xx, nRF51xxx Flash
and OTP series

- Microcontrollers Nuvoton ARM Cortex-Mx: NUC1xx, NUC2xx, M05x, Mini51, Nano1xx series

- Microcontrollers Nuvoton (Winbond): N79xxx, W77xxx, W78xxx, W79xxx, W83xxx series

- Microcontrollers NXP (Philips) UOC series: UOCIII, UOC-TOP, UOC-Fighter (TDA1xxxx) series

- Microcontrollers Renesas: R8C/Tiny series, RX series, uPD70Fxxx, uPD78Fxxx series, RL78 series,
R32C series

- Microcontrollers Silicon Laboratories(Energy Micro): EFM32Gxx, EFM32GGxx, EFM32LGxx,
EFM32TGxx, EFM32WGxx series

- Microcontrollers Silicon Laboratories: SiM3Cxxx, SiM3Lxxx, SiM3Uxxx series

- Microcontrollers STM (ex SGS-Thomson): SPC5 (Power Architecture)

- Microcontrollers TI (Chipcon): CC11xx, CC24xx, CC25xx, CC85xx series

Composants supportés (avec adapteurs addtionnels en cours de développement):


- EPROM: NMOS/CMOS, 27xxx and 27Cxxx series

- EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, 3D Plus 3DEExxxxxxxx

- FRAM: Ramtron

- MRAM: Everspin MRxxxxx8x, 3D Plus 3DMRxxxxxxxx

- NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series

- mDOC H3: SanDisk (ex M-Systems) SDED5xxx, SDED7xxx, MD2533xxx, MD2534xxx,
Hynix HY23xxx

- Serial MRAM: Everspin MH20xxx, MH25xxx

- 1-Wire E(E)PROM: DS1xxx, DS2xxx

- FPGA: Xilinx: Spartan-3AN

- Clocks: TI(TMS), Cypress

- Special chips: Atmel Tire Pressure Monitoring ATA6285N, ATA6286N; PWM controllers:
Zilker Labs, Analog Devices; Multi-Phase ICs: IR(Chil Semiconductor); Gamma buffers: AUO,
Maxim, TI, ...

- Microcontrollers MCS51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89Fxxx, 89LVxxx, 89LSxxx,
89LPxxx, 89Exxx, 89Lxxx, all manufacturers, Philips LPC series

- Microcontrollers ARM Cortex-M3: ATSAM3Axxx, ATSAM3Uxxx, ATSAM3Nxxx,
ATSAM3Sxxx, ATSAMD20, ATSAM3Xxxx series

- Microcontrollers ARM Cortex-M4: ATSAM4Sxxx series

- Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega,
ATxmega series

- Microcontrollers Atmel AVR32: AT32UC3xxxx, ATUCxxxD3/D4/L3U/L4U series

- Microcontrollers Coreriver: Atom 1.0, MiDAS1.0, 1.1, 2.0, 2.1, 2.2, 3.0 series

- Microcontrollers Cypress: CY7Cxxxxx, CY8Cxxxxx

- Microcontrollers ELAN: EM78Pxxx

- Microcontrollers EPSON: S1C17 series

- Microcontrollers Explore Microelectronic: EPF01x, EPF02x series

- Microcontrollers Generalplus: GPM8Fxxx series

- Microcontrollers GreenPeak: GPxxx series

- Microcontrollers Infineon(Siemens): XC800, C500, XC166, C166 series

- Microcontrollers MDT 1xxx and 2xxx series

- Microcontrollers Megawin: MG87xxx, MPC82xxx series

- Microcontrollers Motorola/Freescale: HC05, HC08, HC11, HC12, HCS08, RS08, S12X, MCF51

- Microcontrollers Myson MTV2xx, 3xx, 4xx, 5xx, CS89xx series

- Microcontrollers National: COP8xxx series

- Microcontrollers Novatek: NT68xxx series

- Microcontrollers NXP (Philips) ARM Cortex-Mx: LPC11xx, LPC11Cxx, LPC11Dxx,
LPC11Uxx, LPC12xx, LPC12Dxx, LPC13xx, LPC17xx, LPC11Axx, LPC11Exx, LPC11xxLV,
LPC18xx, LPC43xx, LPC8xx, EM7xx, series

- Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx, PCD807xx, SAF7780xxx series

- Microcontrollers NXP (Philips) ARM9: LPC31xx series

- Microcontrollers SyncMOS: SM39xxx, SM59xxx, SM73xxx, SM79xxx, SM89xxx series

- Microcontrollers STM (ex SGS-Thomson): ST6xx, ST7xx, ST10xx, STR7xx, STR9xx,
STM32F/L/W, STM8A/S/L series

- Microcontrollers Silicon Laboratories(Cygnal): C8051 series

- Microcontrollers Texas Instruments: MSP430 series, MSC12xx series, TMS320F series, CC430 series,

- Microcontrollers Texas Instruments (ex Luminary Micro): LM3Sxxx, LM3Sxxxx series,
LM4Fxxxx series, TM4C series

*- Microcontrollers ZILOG: Z86/Z89xxx and Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx, ZGP323xxxxxx,
ZLF645xxxxxxx, ZLP12840xxxxx, ZLP323xxxxxxx series

- Microcontrollers other: EM Microelectronic, Spansion(Fujitsu), Goal Semiconductor, Hitachi,
Holtek, Novatek, Macronix, Princeton, Winbond, Samsung, Toshiba, Mitsubishi, Realtek,
M-Square, ASP, Coreriver, Gencore, EXODUS Microelectronic, Topro, TinyARM, VersaChips,
SunplusIT, M-Square, QIXIN, Signetic, Tekmos, Weltrend, Amic, Cyrod Technologies,
Ember, Ramtron, Nordic Semiconductor, Samsung, ABOV Semiconductor...



Contenu du package:


- Boîtier programmateur "BeeProg3"
- Câble de raccordement secteur
- Câble de racordement USB
- CD contenant le programme
- Mini manuel de demarrage
- Support "Pod" pour auto-test
- Vis de fixation pour le support (le support n'est pas livré)
- Carte d'enregistrement
